9.21.309
In this topic:
•Deprecated hardware and devices
Verified build release date: 25 January 2025
Full winIDEA version: 9.21.309.1.203915
winIDEA Debug Plugin for CLion
You can now use the winIDEA CLion Debug Plugin within JetBrains CLion IDE. This means you can use the debugging capabilities of winIDEA directly from CLion.
See Install winIDEA CLion Debug Plugin Getting started for more details.
GDB Client: Process ID / Name
The GDB Options dialog now lets you select the Name of the Process to attach to. This allows you to attach to the Process using its Name if this is more convenient. To use this new feature go to GDB | Options.
See GDB MI for more details.

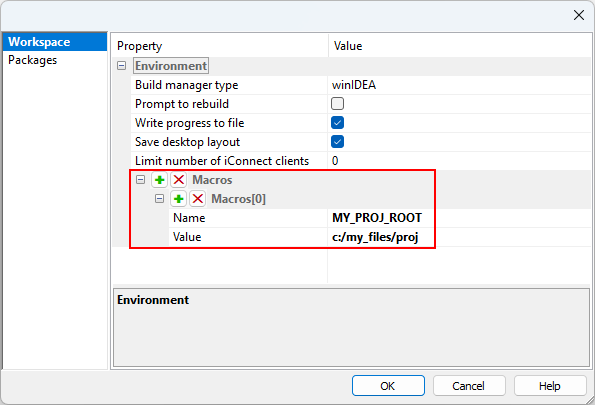

Macros
You can now define Custom Macros in the Workspace dialog. This means you can then use them in other configuration dialogs that accept file paths (such as Symbol File, and Program File dialogs), easily changing the source location for multiple files. To enable this feature go to Tools | Workspace.

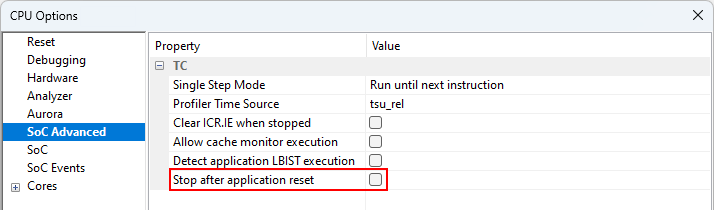

Stop after application reset for Infineon AURIX
The SoC Advanced page now provides the option to stop the execution of the application. To enable this feature go to Hardware | CPU Options | SoC Advanced.
Simplified Update page in Debug Options
The number of options in Debug | Debug Options | Update was reduced to the most relevant options.

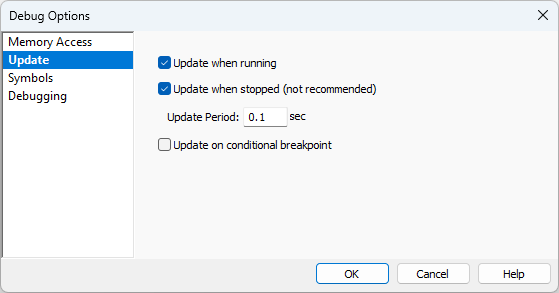

Currently:

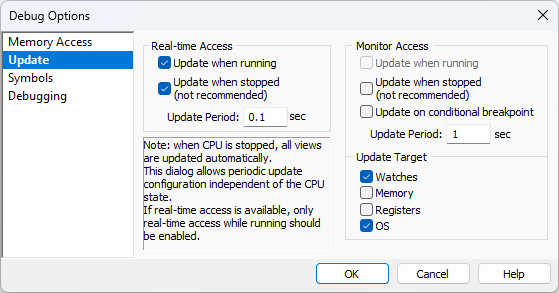

Previously:
Texas Instruments
AM68x
Adding support.
Supported features:
•Debug: JTAG, A72 (Main Domain), R5 (Main Domain), R5 (MCU Domain), Cortex-M4 (SMS Domain), Cortex-M4 (HSM Domain), 2x C71 (DSP), C71 (DSP) Reset Release, multicore (core sync)
•UMI: External SPI
•Extra: DDR Init
Variants:
•AM68A7
•AM68A9
winIDEA version: 9.21.298.0.199546
AM62Ax
Extending support.
Supported features:
•Debug: 1x C7xV256 (DSP)
winIDEA version: 9.21.300.0.200576
TDA4xH / TDA4xP
Adding support.
Supported features:
•Debug: JTAG, 8x Cortex-A72 (App Cores), 6x Cortex-R5F (Main Domain), 2x Cortex-R5F (MCU Domain), 1x Cortex-M4 (SMS Domain), 1x Cortex-M4 (HSM Domain), 4x C7x (DSP), multicore (core sync)
•SFRs
Variants:
•TDA4VH
•TDA4AH
•TDA4VP
•TDA4AP
winIDEA version: 9.21.302.0.201006
TDA4VM
Extending support.
Supported features:
•Debug: C71 (DSP)
winIDEA version: 9.21.303.0.202111
GigaDevice
GD32A71x
Extending support.
Supported features:
•Trace: Cortex-M7 ETM Parallel, Cortex-M7 DWT ITM Parallel, Cortex-M7 ITM Parallel
Variants:
•GD32A714A
winIDEA version: 9.21.298.0.199316
SemiDrive
E3119F8/E3118F4
Extending support.
Supported features:
•Trace: ETM ETF, ETM ETB, ETM Parallel
winIDEA version: 9.21.298.0.199435
Macronix
MX25UW6345G FLASH
Adding support.
winIDEA version: 9.21.300.0.200667
Marvell
88Q505x / 88Q5072
Extending support.
Supported features:
•Trace: ETM Parallel (supported only on iC7pro or using Active Probe Parallel)
winIDEA version: 9.21.297.0.199116
Infineon
XMC7100
Adding support.
Supported features:
•Debug: SWD, JTAG, 1x Cortex-M0+, 1x Cortex-M7 (XMC7100), 2x Cortex-M7 (XMC7100D)
•SFRs
•UMI: Code Flash, Work Flash
•Trace: Cortex-M0 MTB, Cortex-M7 ETM Parallel, Cortex-M7 DWT ITM Parallel, Cortex-M7 ITM Parallel, Cortex-M7 ETM ETB, Cortex-M7 DWT ITM ETB, Cortex-M7 ITM ETB
Variants:
•XMC7100-xxxxK1088
•XMC7100-xxxxK2112
•XMC7100-xxxxK4160
•XMC7100D-xxxxK2112
•XMC7100D-xxxxK4160
winIDEA version: 9.21.307.0.202778
XMC7200
Adding support.
Supported features:
•Debug: SWD, JTAG, 1x Cortex-M0+, 1x Cortex-M7 (XMC7200), 2x Cortex-M7 (XMC7200D)
•SFRs
•UMI: Code Flash, Work Flash
•Trace: Cortex-M0 MTB, Cortex-M7 ETM Parallel, Cortex-M7 DWT ITM Parallel, Cortex-M7 ITM Parallel, Cortex-M7 ETM ETB, Cortex-M7 DWT ITM ETB, Cortex-M7 ITM ETB
Variants:
•XMC7200-xxxxK8384
•XMC7200D-xxxxK8384
winIDEA version: 9.21.307.0.202778
Deprecated hardware and devices
ST
•SPC560-FPGA
•SPC560S50L5
•SPC560S60L5
•SPC560S60L7
•SPC574K72
•SPC574S60
•SPC574S64 Cut2+
winIDEA version: 9.21.303
NXP
•MPC5604E
•MPC5602S
•MPC5604S
•MPC5606S
•PXD10xx
•MPC5645S
•PXD20xx
•MPC5668E
•MPC5668G
•PXN2xxx
•MPC5668_FPGA_1M5
•MPC5668_FPGA_512K
•SC667349
•MPC5744K
winIDEA version: 9.21.303
Refer to this document for more information.
