Release Notes

In this topic:

•Changes to existing features

•Newly supported devices

•Known issues





Verified build release date: 22 February 2025

Full winIDEA version: 9.21.315.1.207599





Changes to existing features

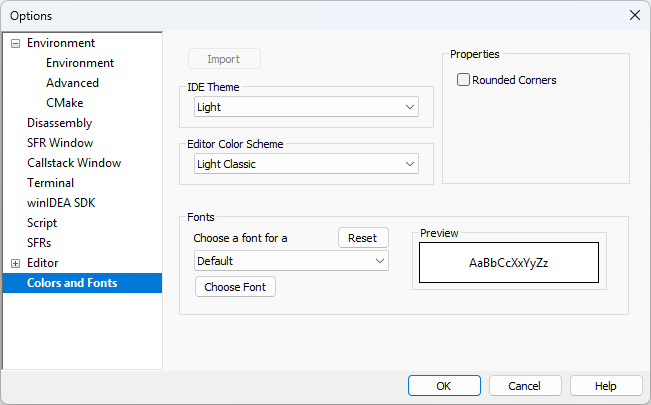

Colors and Fonts customization

You can now customize the appearance of winIDEA through the Colors and Fonts settings.

•Switch between Light and Dark modes.

•Apply independent syntax highlighting and editor styles.



You can access the dialog via Tools | Options | Colors and Fonts.







Newly supported devices

ChinaCore

CCFC3012PT

Adding support.



Supported features:

•Debug: JTAG, C3007, C2002, multicore (core sync)

•SFR

•UMI: CFLASH, DFLASH



winIDEA version: 9.21.310.0.203394





Thinktech

TTA9

Adding support.



Supported features:

•Debug: SWD, JTAG, 1x Cortex-M7

•SFRs

•UMI: CFLASH, DFLASH

•Trace: Cortex-M7 ETM Parallel, Cortex-M7 DWT ITM Parallel, Cortex-M7 ITM Parallel, Cortex-M7 ETM ETB, Cortex-M7 DWT ITM ETB, Cortex-M7 ITM ETB



Variants:

•TTA9S1

•TTA9S2



winIDEA version: 9.21.310.0.204138





GigaDevice

GD32A72x

Adding support.



Supported features:

•Debug: JTAG, SWD, 2x Cortex-M7, Cortex-M23 (as normal core)

•SFR

•UMI: Internal

•Trace: Cortex-M7 ETM Parallel, Cortex-M7 DWT ITM Parallel, Cortex-M7 ITM Parallel



Variants:

•GD32A722A

•GD32A724A



winIDEA version: 9.21.311.0.204712





GD32A74

Adding support.



Supported features:

•Trace: Cortex-M7 ETM Parallel, Cortex-M7 DWT ITM Parallel, Cortex-M7 ITM Parallel



winIDEA version: 9.21.312.0.205369





Tongxin Micro

THA64x

Adding support.



Supported features:

•Debug: JTAG, SWD, 2x Cortex-R52+ (lockstep), 2x Cortex-R52+ (lockstep/split), multicore (core sync)

•SFR

•UMI: Cortex-R52 PFLASH, Cortex-R52 DFLASH



Variants:

•THA6412



winIDEA version: 9.21.312.0.205081





Known issues

Refer to this document for more information.
