9.21.324
In this topic:
Verified build release date: 22 February 2025
Full winIDEA version: 9.21.324.1.211802

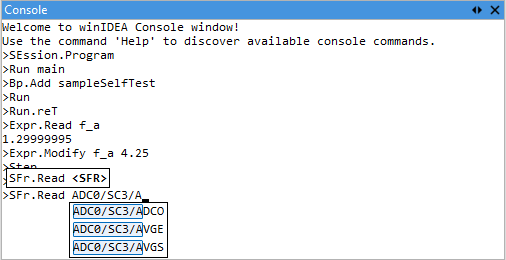

Console window
With the Console window you can now perform various commands through its interactive interface. You can open the window via View | Workspace | Console or using the shortcut CTRL + SHIFT + C.
See Console for more details.

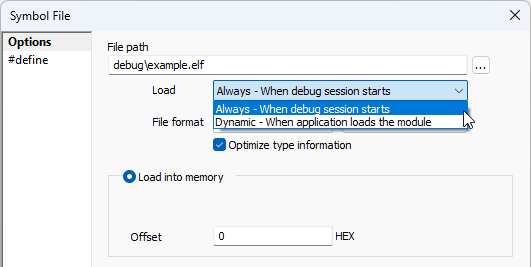

Symbol File Load configuration
The Symbol File dialog now features the Load option. This feature lets you select the point in which winIDEA loads the Symbol file, allowing to accurately debug dynamically loaded modules. You can find this new feature in Debug | Configure Session | Applications | Symbol Files.
See File options for more details.

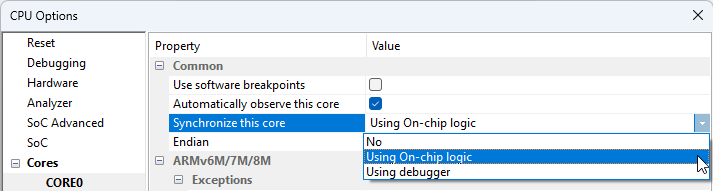

Synchronize this core
This option, found in Hardware | CPU Options | Cores | <core>, is now a drop-down menu. You can now use the iC7 BlueBox to actively monitor and synchronize cores that do not support On-chip logic synchronization.
See core-specific options in Architecture-specific notes for more details.
Currently
Previously
RH850: Force run
The behavior of the Force run option, located in Hardware | CPU Options | CoreN | Debug entry type, was updated. It now requires the Reset CPU after Download option in Hardware | CPU Options | Reset to be enabled in order to run the core following a Download.
See Core-specific options for more details.
winIDEA default installation directory
The default winIDEA installation directory is now C:\winIDEA.
winIDEA version: 9.21.320.0.209214
ST
STM32H523/533
Adding support.
Supported features:
•Debug
•Internal FLASH programming
•Trace: SWO, Parallel
winIDEA version: 9.21.317.0.207309
SPC58VQ838727
Adding support.
winIDEA version: 9.21.317.0.207366
STM32U375/385
Adding support.
Supported features:
•Debug
•FLASH programming
•SPI programming
•Trace: SWO, Parallel
winIDEA version: 9.21.318.0.208222
SR6G6
Adding support.
Supported features:
•Debug: JTAG, SWD, 4x Cortex-R52 (2x lockstep, 2x split/lock), DSPH (Cortex-M4) (lockstep), DME (Cortex-M4) (lockstep), HSM (Cortex-M4), multicore (core sync)
•SFR
•UMI: Cortex-R52 RAM Init, Cortex-R52 Internal, HSM Internal
•Trace: Cortex-R52 ETM ETR, Cortex-R52 ETM Aurora, Cortex-M4 ETM ETR, Cortex-M4 ETM Aurora, Cortex-M4 ITM ETR, Cortex-M4 ITM Aurora, Cortex-M4 DWT ITM ETR, Cortex-M4 DWT ITM Aurora
Variants:
•SR6G6Cx
winIDEA version: 9.21.317.0.207037
NXP
S32K364/366
Adding support.
Supported features:
•Debug
•FLASH programming
•Trace
winIDEA version: 9.21.319.0.208548
Flagchip
FC7300F8MxQ
Adding support.
Supported features:
•Debug: JTAG, SWD, 2x Cortex-M7 LS, 2xCM7(split)/1xCM7(LS), Peripheral Freeze script
•SFR
•UMI: Internal
•Trace: ETM Parallel, DWT ITM Parallel, ETB
winIDEA version: 9.21.318.0.208101
Thinktech
Alioth-A8Lite
Adding support.
Supported features:
•Debug: JTAG, SWD, Cortex-M7, HSM (Cortex-M0)
•SFR
•UMI: Internal
•Trace: ETM ETB, DWT ETM ETB, DWT ITM ETB, ETM Parallel, DWT ETM Parallel, DWT ITM Parallel
Variants:
•TTA8Lite
winIDEA version: 9.21.324.1.211652
Refer to this document for more information.
