9.21.334
In this topic:
Verified build release date: 17 May 2025
Full winIDEA version: 9.21.334.2.217137
Launch configuration

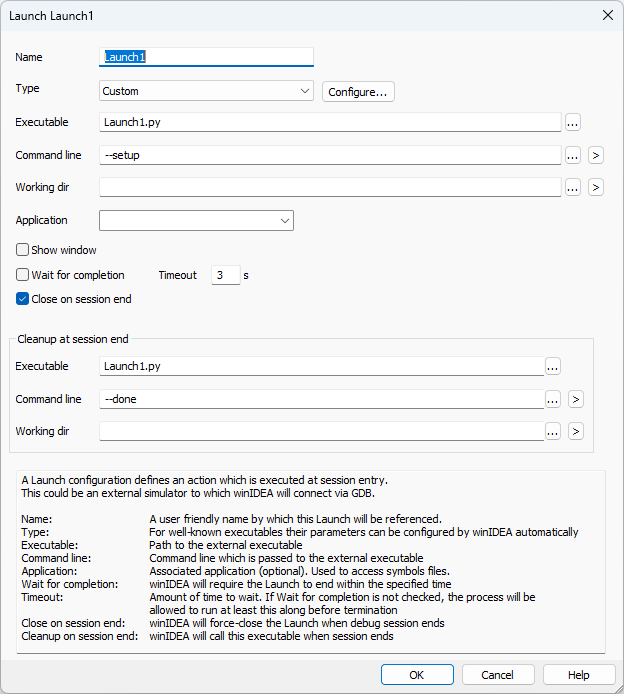

The dialog, found in Debug | Configure session | Launches | Add, was updated with a new feature. This means you can now configure a cleanup action which is invoked at debug session end.
See Launches for more information.
winIDEA SDK

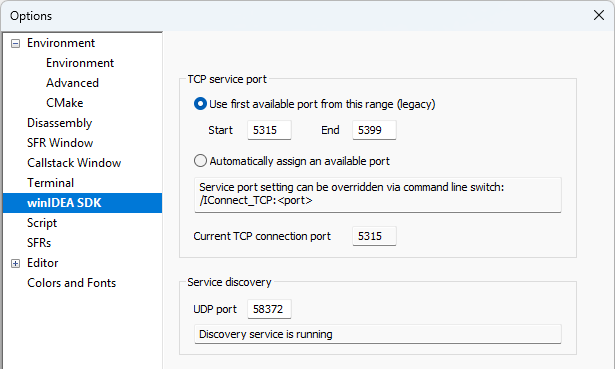

The page, found in Tools | Options | winIDEA SDK, was updated. It now lets you also choose an automatic TCP port selection.
See winIDEA SDK for more information.
RESET drive mode
The options of this menu, found in Hardware | CPU Options | Reset, were updated:
•Open-drain was renamed Open-drain + Pull-up.
•A new Open-drain option was added, which lets you select an open-drain output without pull-up.
See Architecture-specific notes, Reset topics, for more information.
NXP
MCX Nx4x
Extending support.
Variants:
•MCXN546
•MCXN547
winIDEA version: 9.21.327.0.212066
Ranger NCJ29D6
Adding support.
Supported features:
•Debug: Cortex-M33
•SFR
•UMI: Internal Code
•Extra: NXP software package transfer, Recovery script
Variant:
•NCJ29D6
winIDEA version: 9.21.327.0.212297
Texas Instruments
AM263x
Extending support.
Supported features:
•Trace: ETM Parallel, STM Parallel
winIDEA version: 9.21.328.0.212613
ST
STM32WB0
Adding support.
Supported features:
•Debug: SWD, JTAG, Cortex-M0+, Peripheral Freeze, WDOG disable script
•SFR
•UMI: Internal
Variants:
•STM32WB09xE
•STM32WB07xC
•STM32WB06xC
•STM32WB05xZ
winIDEA version: 9.21.329.0.213397
SR6P3
Extending support.
Supported features:
•Debug: JTAG password challenge
•Trace: Cortex-R52 ETM ETR, Cortex-R52 ETM Aurora, Cortex-M4 ETM ETR, Cortex-M4 ETM Aurora, Cortex-M4 ITM ETR, Cortex-M4 ITM Aurora, Cortex-M4 DWT ITM ETR, Cortex-M4 DWT ITM Aurora
winIDEA version: 9.21.330.0.214079
STM32H7S3x8/STM32H7S7x8
Adding support.
Supported features:
•Debug: JTAG, SWD, Cortex-M7, Peripheral Freeze
•SFR
•UMI: Internal
Variants:
•STM32H7S3x8
•STM32H7S7x8
winIDEA version: 9.21.330.0.214324
STM32WBA54/55
Adding support.
Supported features:
•Debug: SWD, JTAG, Cortex-M33
•SFR
•UMI: Internal
Variants:
•STM32WBA55xG
•STM32WBA54xG
•STM32WBA55xE
•STM32WBA54xE
winIDEA version: 9.21.331.0.214478
SemiDrive
E3650
Adding support.
Supported features:
•Debug: JTAG, SWD, 4x Cortex-R52+ (lockstep), 1x Cortex-R5, 1x HSM (Cortex-R5), multicore sync
•UMI: MRAM
•Trace: Cortex-R5 ETM Parallel, Cortex-R5 ETM ETF, Cortex-R5 (HSM) ETM Parallel, Cortex-R5 (HSM) ETM ETF, Cortex-R52 ETM Parallel, Cortex-R52 ETM ETF
Variants:
•E3650
winIDEA version: 9.21.329.0.213206
•SFR
winIDEA version: 9.21.331.0.214713
Zhixin Semi
Z20K146/148MS
Adding support.
Supported features:
•Debug: JTAG, SWD, Cortex-M4
•SFR
•UMI: FLASH
Variants:
•Z20K146MS
•Z20K148MS
winIDEA version: 9.21.331.0.215140
•Trace: ETM Parallel, DWT ETM Parallel, DWT ITM Parallel, ETM SWO, DWT ETM SWO, DWT ITM SWO
winIDEA version: 9.21.332.0.215636
Microchip
PIC64GX
Adding support.
Supported features:
•Debug: JTAG, 4x U54, E51
Variants:
•PIC64GX1000
winIDEA version: 9.21.333.0.215988
Tongxin Micro
THA62x
Extending support.
Supported features:
•Debug: 1x Cortex-M3 (SC300) (HSM)
winIDEA version: 9.21.329.0.212952
THA64x
Extending support.
Supported features:
•Debug: 1x Cortex-M3 (SC300) (HSM)
winIDEA version: 9.21.329.0.212952
Refer to this document for more information.
