9.21.296
In this topic:
Verified build release date: 14 December 2024
Full winIDEA version: 9.21.296.1.199992

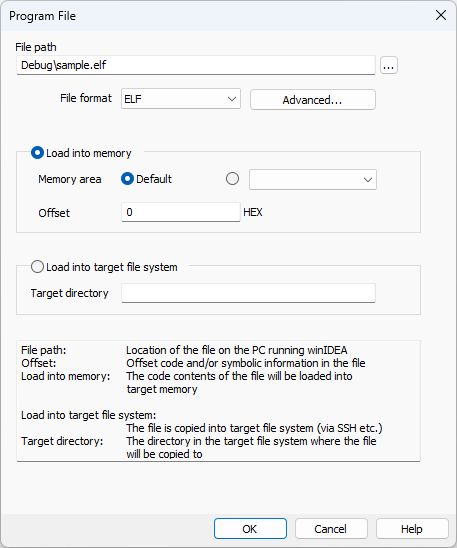

Program File dialog adds destination
You can now choose the destination of the Program File and select the most convenient destination according to your project. You can find this new feature in Debug | Configure Session | SoCs | Program Files | Edit.
See File options for more details.

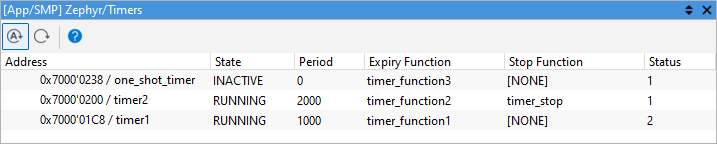

Zephyr Timers window
The Timers window for Zephyr allows you to see information about all timers for the Zephyr operating system. You can open it via View | [<application name>] Zephyr | Timers.
Infineon DAP miniWiggler update
Infineon DAP miniWiggler is now ready to use out of the box with winIDEA. This means you no longer need to install the Infineon DAS Tool Interface. Its support has also been extended to Linux.
GDB Client: Remote Files Location
The Location field in GDB | Options | GDB MI was renamed Executable Files. Files now can also be downloaded to the remote target/computer either via SSH or the gdb to gdbserver connection.
Trace Configuration Helper update
Trace Configuration Helper (iTCHi) was updated to comply with the regular Python installation process. This means you no longer have to be aware of the exact script locations, and you can run it from anywhere as long as iTCHi is installed in your Python environment.
See Trace Configuration Helper for more details.
ST
SR6P7
Extending support.
Supported features:
•Trace: Cortex-R52 ETM ETR, Cortex-R52 ETM Aurora, Cortex-M4 ETM ETR, Cortex-M4 ETM Aurora, Cortex-M4 ITM ETR, Cortex-M4 ITM Aurora, Cortex-M4 DWT ITM ETR, Cortex-M4 DWT ITM Aurora
winIDEA version: 9.21.284.0.192068
NXP
Kinetis K82
Adding support.
Supported features:
•Debug: JTAG, SWD, Cortex-M4
•SFR
•UMI: Internal
•Trace: Cortex-M4 ETM Parallel, Cortex-M4 ITM Parallel, Cortex-M4 DWT ITM Parallel, Cortex-M4 ETM SWO, Cortex-M4 ITM SWO, Cortex-M4 DWT ITM SWO
Variant:
•MK82FN256Vxx15
winIDEA version: 9.21.286.0.192774
MCX A13x, 14x, 15x
Adding support.
Supported features:
•Debug: SWD, 1x Cortex-M33
•SFR
•UMI: Internal FLASH
Variants:
•MCXA132
•MCXA133
•MCXA142
•MCXA143
•MCXA144
•MCXA145
•MCXA146
•MCXA152
•MCXA153
•MCXA154
•MCXA155
•MCXA156
winIDEA version: 9.21.286.0.193120
•Trace: DWT ITM SWO, ITM SWO
winIDEA version: 9.21.294.0.198149
MCX N23x
Adding support.
Supported features:
•Debug: SWD, JTAG, 1x Cortex-M33
•SFRs
•UMI: Internal
•Trace: DWT ITM SWO, ITM SWO
Variants:
•MCXN235
•MCXN236
winIDEA version: 9.21.293.0.197374
MCX W72
Adding support.
Supported features:
•Debug: SWD, Cortex-M33
•SFRs
•UMI: Internal
Variants:
•MCXW727
•MCXW728
winIDEA version: 9.21.294.0.197875
KW47
Adding support.
Supported features:
•Debug: SWD, Cortex-M33
•SFRs
•UMI: Internal
Variants:
•KW47Z42x8
•KW47Z42x9
•KW47Z42xB
•KW47B42x8
•KW47B42x9
•KW47B42xB
winIDEA version: 9.21.294.0.197875
SemiDrive
E3340
Adding support.
Supported features:
•Debug: SWD, JTAG, 1xCortex-R5 (lockstep)
•SFR
•UMI: External SPI, HyperFlash (HyperBUS)
winIDEA version: 9.21.284.0.192068
E3119F8/E3118F4
Adding support.
Supported features:
•Debug: SWD, JTAG, HSM
•(E3119F8) Debug: 2x R5 (lockstep or split)
•(E3118F4) Debug: 1x R5
•UMI: Internal (SiP)
Variants:
•E3119F8
•E3118F4
winIDEA version: 9.21.293.0.197374
Texas Instruments
TDA4VL / TDA4VE / TDA4AL
Extending support.
Supported features:
•Debug: C71 (DSP)
winIDEA version: 9.21.288.0.195065
MSPM0Gx51x
Adding support.
Supported features:
•Debug: SWD, Cortex-M0+
•SFRs
•UMI: Internal
Variants:
•MSPM0G1518
•MSPM0G1519
•MSPM0G3518
•MSPM0G3519
winIDEA version: 9.21.289.0.195892
AWR2544
Adding support.
Supported features:
•Debug: JTAG, 1x Cortex-R5F (lockstep), HSM (Cortex-M4)
•SFR
•UMI: External SPI
•Extra: ROM_Eclipse RAM to 0x0000_0000
winIDEA version: 9.21.288.0.194333
AWR2x44P
Adding support.
Supported features:
•Debug: JTAG, 1x Cortex-R5F (lockstep), HSM (Cortex-M4)
•SFR
•UMI: External SPI
Variants:
•AWR2944P
•AWR2E44P
winIDEA version: 9.21.288.0.194333
•Extra: DSP load, DSP reset, ROM_Eclipse RAM to 0x0000_0000
winIDEA version: 9.21.291.0.196722
GigaDevice
GD32A71
Adding support.
Supported features:
•Debug: JTAG, SWD, Cortex-M7, Cortex-M23 (as normal core)
•SFR
•UMI: Internal
Variants:
•GD32A711A
•GD32A712A
•GD32A714A
winIDEA version: 9.21.296.0.198912
GD32A74
Adding support.
Supported features:
•Debug: JTAG, SWD, Cortex-M7, Cortex-M23 (as normal core)
•SFR
•UMI: Internal
Variants:
•GD32A741A
•GD32A742A
•GD32A744A
winIDEA version: 9.21.296.1.199117
Infineon
TC4D
Extending support.
Variants:
•TC4D7XE
winIDEA version: 9.21.295.0.198779
Refer to this document for more information.
