Microchip FlashPro6 10-pin (2.54mm)
|

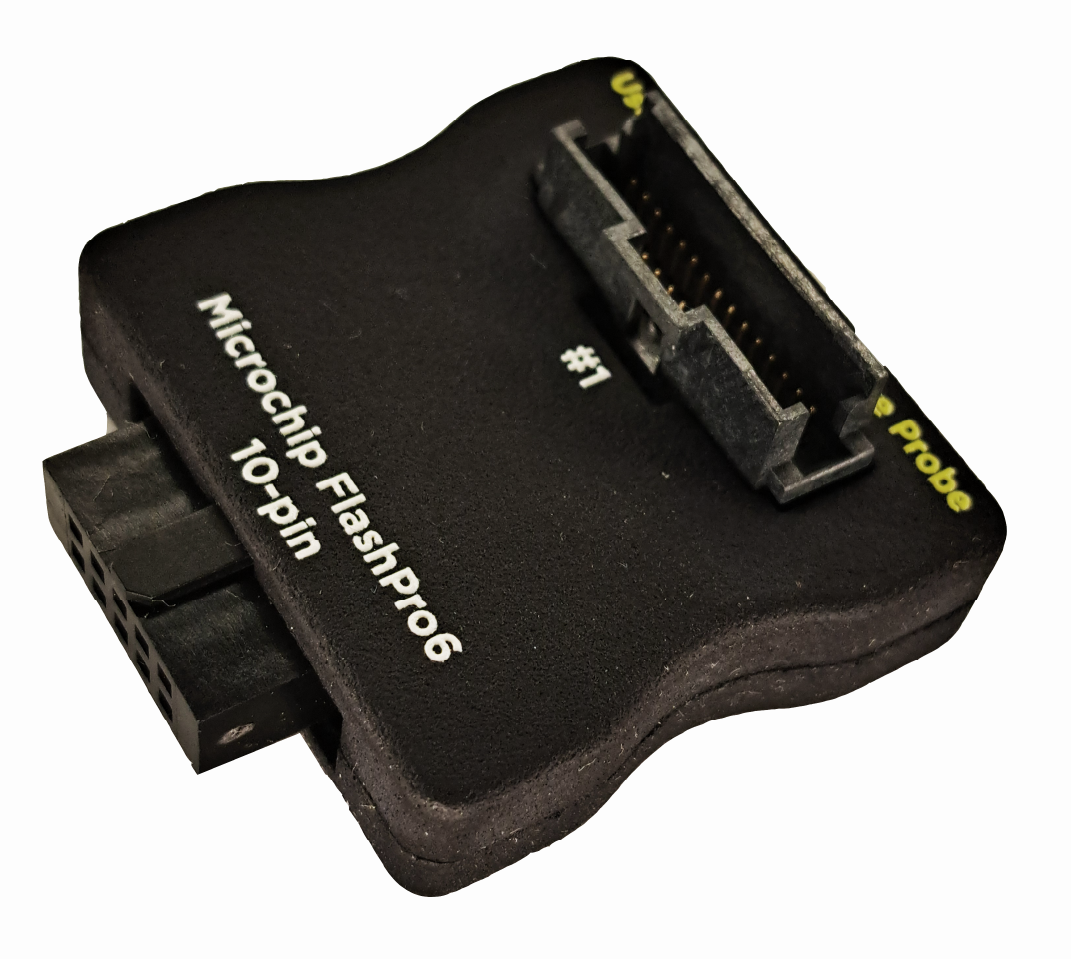

The Microchip FlashPro6 10-pin (2.54mm) Adapter is used to connect to iC7mini, iC7pro, Active Probe Debug or Active Probe Parallel. This adapter is equipped with a 10-pin (2.54mm) connector, guaranteeing compatibility with a diverse range of Microchip PolarFire SoC FPGA controllers.
Requirements
•Hardware: iC7mini BlueBox / iC7pro BlueBox / Active Probe Debug / Active Probe Parallel
•Microcontroller Architecture: RISC-V
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
|---|---|---|---|---|---|---|---|
O |
JTAG |
TCK |
1 |
2 |
GND |
Ground |
|
I |
JTAG |
TDO |
3 |
4 |
|
|
|
O |
JTAG |
TMS |
5 |
6 |
Vref |
Reference Voltage |
I |
|
|
|
7 |
8 |
nTRST |
JTAG |
O |
O |
JTAG |
TDI |
9 |
10 |
GND |
Ground |
|
Microchip FlashPro6 10-pin pinout
Signal Direction is described from the BlueBox perspective.
|
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
|
Make sure this adapter fits on your Target connector. |
|
Refer to Hardware Setup and Configuration Tutorial for more information on how to connect the hardware. |
