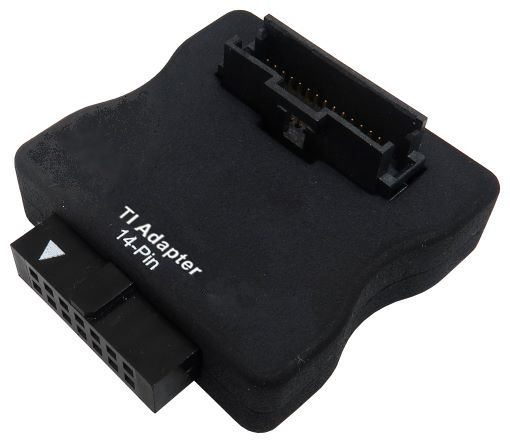

Texas Instruments 14-pin (2.54mm) Adapter
|
The TI 14-pin (2.54mm) Adapter is used to connect to the iC7mini, iC7pro, Active Probe Debug or Active Probe Parallel. This adapter is equipped with a 14-pin (2.54mm) connector, guaranteeing compatibility with a diverse range of Texas Instruments Arm Cortex-A, Cortex-R, Cortex-M and C2000 microcontroller families.
Requirements
•Hardware: iC7mini BlueBox / iC7pro BlueBox / Active Probe Debug / Active Probe Parallel
•Microcontroller Architecture: Texas Instruments Arm Cortex-A/R/M and C2000
The following pinout is valid on the target side:
Signal direction |
Signal description |
Signal |
Pin |
Pin |
Signal |
Signal description |
Signal direction |
|---|---|---|---|---|---|---|---|
O |
JTAG |
TMS |
1 |
2 |
nTRST |
JTAG |
O |
O |
JTAG |
TDI |
3 |
4 |
TDIS |
Target Disconnect |
I |
I |
Reference Voltage |
Vref |
5 |
6 |
|
|
|
I |
JTAG |
TDO |
7 |
8 |
GND |
Ground |
|
I |
Return TCK |
RTCK |
9 |
10 |
GND |
Ground |
|
O |
JTAG |
TCK |
11 |
12 |
GND |
Ground |
|
I/O |
Emulation pins |
EMU0 |
13 |
14 |
EMU1 |
Emulation pins |
I/O |
14-pin TI pinout
Signal Direction is described from the BlueBox perspective.
|
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
|
Make sure this adapter fits on your Target connector. |
|
Refer to Hardware Setup and Configuration Tutorial for more information on how to connect the hardware. |
