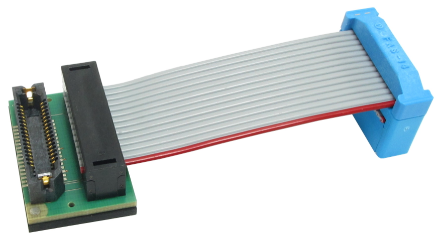

14-pin 2.54 mm LPD Adapter
|
Adapter must be ordered separately to connect to the target featuring 14-pin 2.54mm pitch LPD target debug connector. This adapter can be used in conjunction with the iC6000 DTM Aurora/LPD module (IC60024-1) and RH850 Aurora Active Prove (Ordering code IC57176).
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
|---|---|---|---|---|---|---|---|
O |
LPD |
LPDCLK |
1 |
2 |
GND |
Ground |
|
O |
JTAG |
TRST |
3 |
4 |
FLMD0 |
Flash Mode |
O |
I |
LPD |
LPDO |
5 |
6 |
FLMD1 |
Flash Mode |
|
O |
LPD |
LPDI |
7 |
8 |
Vref |
Reference Voltage |
I |
O |
|
Reserved |
9 |
10 |
NC |
Not Connected |
|
I |
LPD |
LPDCLKOUT |
11 |
12 |
GND |
Ground |
|
I/O |
Reset |
RESET |
13 |
14 |
GND |
Ground |
|
14-pin 2.54mm RH850 target pinout
Signal Direction is described from the BlueBox perspective.
