RH850 Aurora Active Probe V1.4
RH850 Aurora Active Probe enables debugging, tracing and testing of Renesas RH850 microcontroller families. Besides the standard LPD debug interface it supports also a high-speed Aurora trace interface operating at its maximum frequency. Its small and compact hardware size allows for connecting to a target microcontroller in a confined space as far as 10 m away. The Active Probe supports up to 4 Aurora lanes, running at a maximum bitrate of 5Gbps.
RH850 Aurora Active Probe is connected to the iC7max and iC5700 BlueBox on one side via FNet cable. To connect the Active Probe to an embedded target with architecture-specific target connector, an Active Probe Adapter must be ordered separately. If your target connector's pinout doesn't align with the Active Probe Adapter's pinout, you have the option to order Converters.
The RH850 Aurora Active Probe is delivered with the following components:

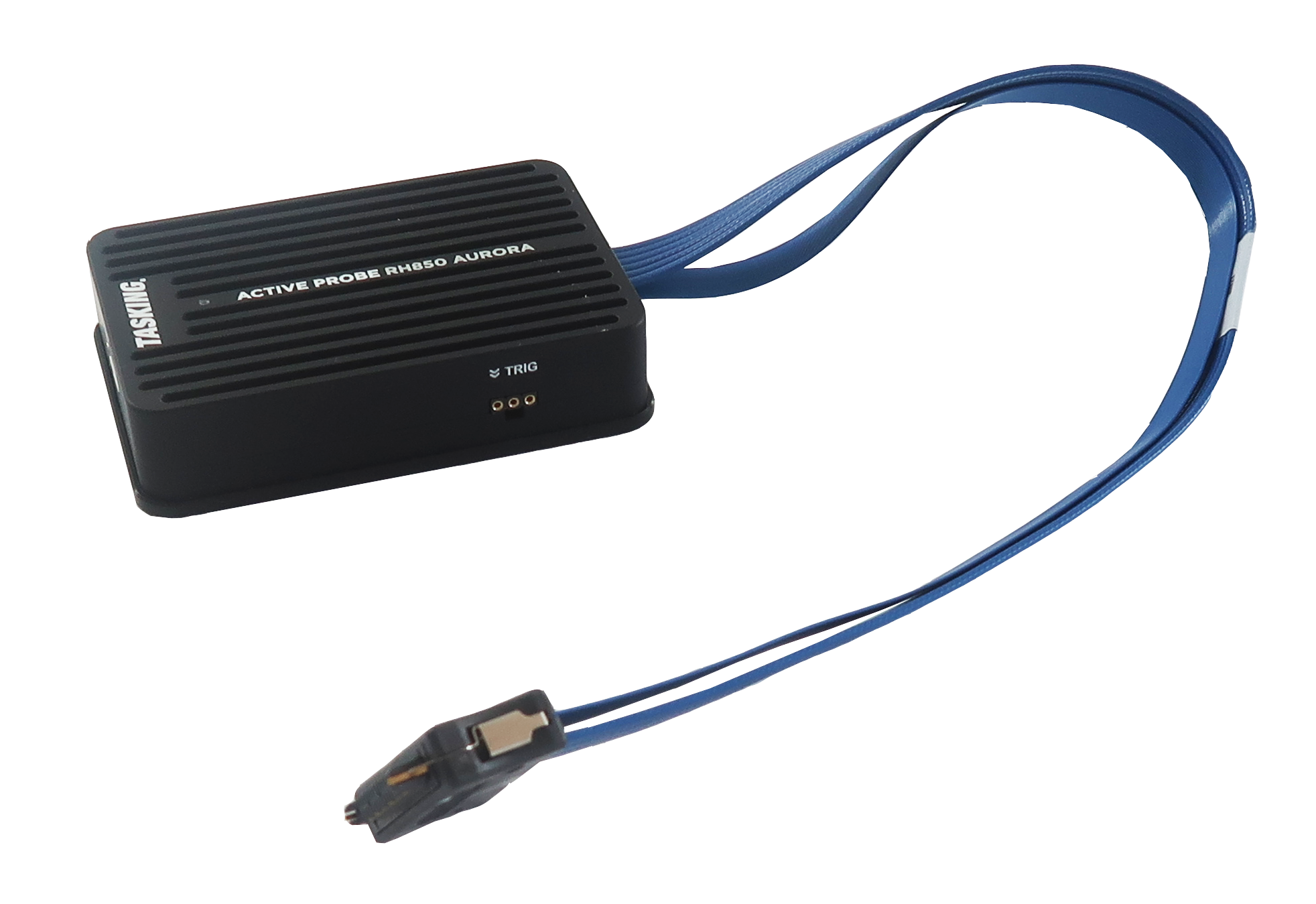

RH850 Aurora Active Probe |
1m FNet Cable |
|---|---|
Ordering code: IC57176 |
Ordering code: BB-FNET-100 |
|
|
