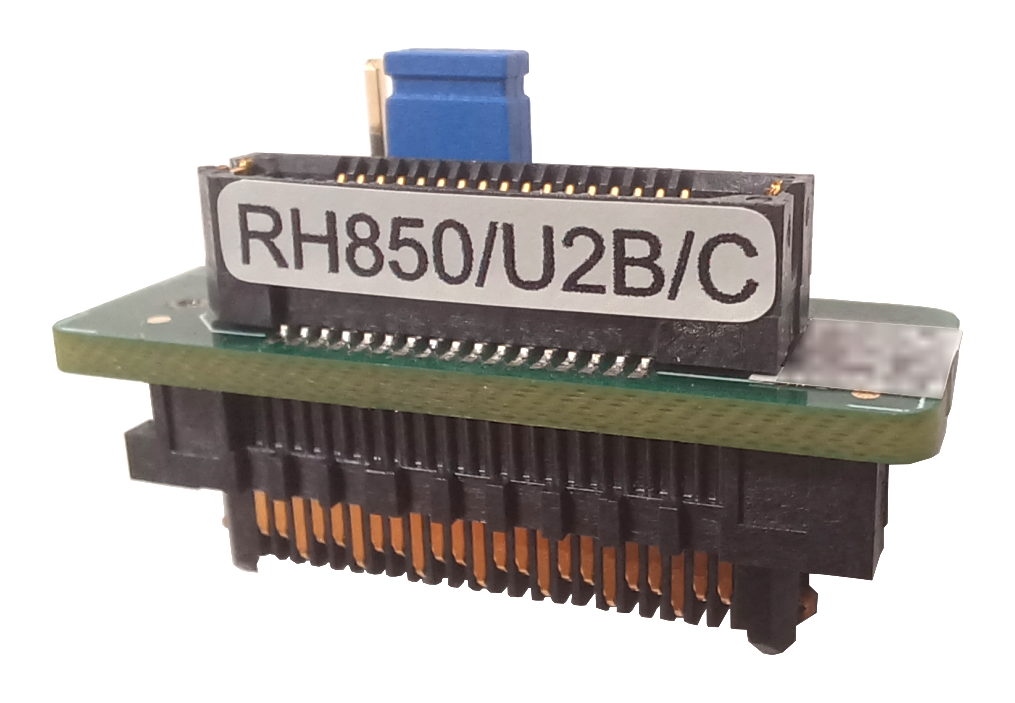

RH850 Aurora 34-pin to Aurora 46-pin Converter
|
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
I |
AGBT TX0_P |
TX0_P |
1 |
2 |
Vref |
Reference Voltage |
I |
I |
AGBT TX0_N |
TX0_N |
3 |
4 |
LPDCLK |
Debug Clock |
O |
|
Ground |
GND |
5 |
6 |
FLMD1 |
Flash Mode |
O |
|
|
Reserved |
7 |
8 |
nAURORESET* |
Debug Signal |
|
|
|
Reserved |
9 |
10 |
NC |
Not Connected |
|
|
Ground |
GND |
11 |
12 |
nTRST |
JTAG |
O |
|
|
Reserved |
13 |
14 |
FLMD0 |
Flash Mode |
O |
|
|
Reserved |
15 |
16 |
nEVTI |
Nexus Event Input |
O |
|
Ground |
GND |
17 |
18 |
nEVTO |
Nexus Event Output |
I |
|
|
Reserved |
19 |
20 |
NC |
Not Connected |
|
|
|
Reserved |
21 |
22 |
nRESET |
Reset |
I/O |
|
Ground |
GND |
23 |
24 |
GND |
Ground |
|
|
Not Connected |
NC |
25 |
26 |
CLK_P |
AGBT Clock_P |
O |
|
Not Connected |
NC |
27 |
28 |
CLK_N |
AGBT Clock_N |
O |
|
Ground |
GND |
29 |
30 |
GND |
Ground |
|
|
Not Connected |
NC |
31 |
32 |
WDGDIS |
Watchdog disable |
O |
|
Not Connected |
NC |
33 |
34 |
NC |
Not Connected |
|
|
Ground |
GND |
35 |
36 |
GND |
Ground |
|
|
Not Connected |
NC |
37 |
38 |
TMS |
JTAG |
O |
|
Not Connected |
NC |
39 |
40 |
LPDI |
Debug Signal |
O |
|
Ground |
GND |
41 |
42 |
GND |
Ground |
|
|
Not Connected |
NC |
43 |
44 |
LPDO |
Debug Signal |
I |
|
Not Connected |
NC |
45 |
46 |
LPDCLKOUT |
Debug Clock |
I |
46-pin RH850 Aurora pinout
*nAURORESET can be connected to nRESET via J1
Signal Direction is described from the BlueBox perspective.
