Standalone ADIO & CAN/LIN Trace
Following winIDEA configuration enables recording
•analog, digital and SPI signals as a standalone operation with ADIO module.
•CAN and LIN messages as a standalone operation with the CAN/LIN module.
BlueBox connection to the target system is not needed for this operation.
|

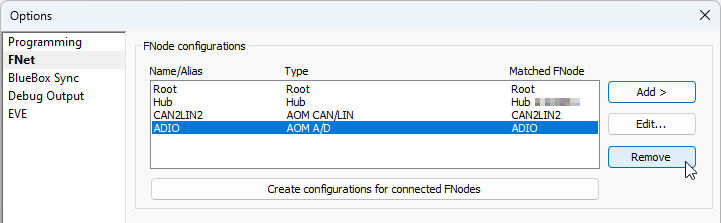

Remove FNodes except the module via Hardware | Options | FNet. |
|

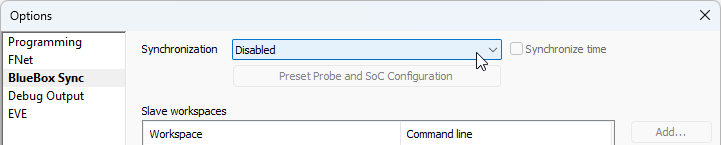

Disable BlueBox Synchronization. |
|
Execute Prepare to attach via Debug menu. |
Wait for the SoC DETACHED status in winIDEA. Read detailed description in Hot Attach.
|

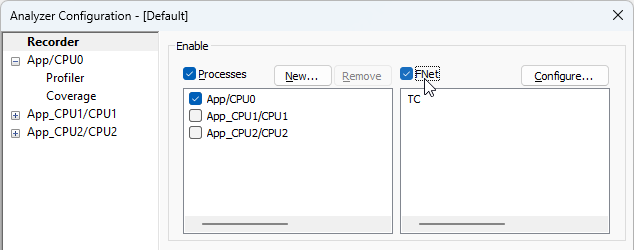

Configure trace via View | Analyzer | Analyzer Configuration. |

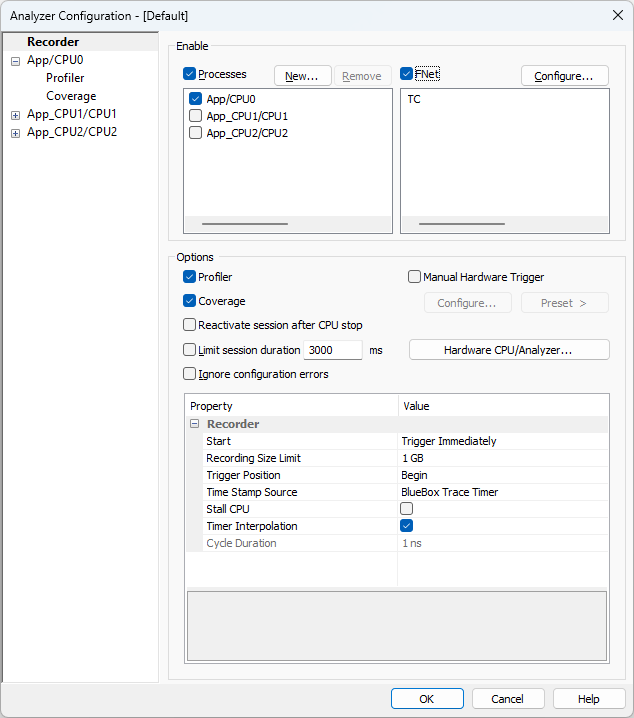

Properties in Recorder (Timer Interpolation, Generate time synchronization messages, Upload while sampling) are architecture specific.
|
Configure FNet settings. |

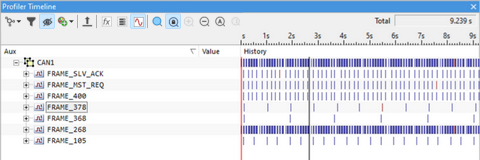

Configuration of the FNet setting and procedure of observing recorded counter in Profiler timeline in described in chapter FNet Counters, Profiler Configuration section.
|
Record trace. |
