Converters

In this topic:

•Cross Table Converters and Active Probe Adapters

•Texas Instruments 14-pin (2.54mm) Converter

•Texas Instruments 60-pin MIPI Converter

•MPC 14-pin JTAG to MPC Samtec 34-pin Converter

•50-pin ERF8 MPC5xxx Nexus Converter

•RH850 Aurora 34-pin to Aurora 46-pin Converter



If your Target connector and Active Probe Adapter do not align, and you are unable to locate another compatible Active Probe Adapter, you may consider ordering a converter designed to adapt the signals and pins to fit your embedded target and Active Probe Adapter.

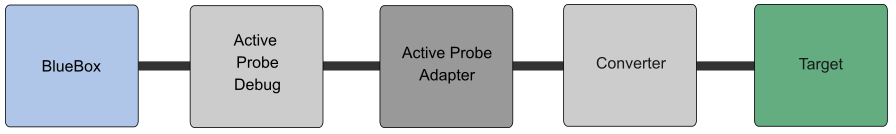

Block diagram showing how BlueBox Hardware is connected

Block diagram showing how BlueBox Hardware is connected





Cross Table Converters and Active Probe Adapters

Below you can find a table with Converters and suitable Active Probe Adapters.



Active Probe Adapters

IC70111

IC70115

IC70150

IC70152

IC70163

IC70176

ARM JTAG 20-Pin (2.54mm)

ARM Mictor 38-Pin (16-MDO)

MPC5xxx OnCE/JTAG 14-Pin (2.54mm)

MPC5xxx Nexus 38-Pin



Renesas RH850 LPD 14-Pin (2.54mm)

Converters



IAPIN20ARM14TI

Texas Instruments 14-pin (2.54mm)

ok-arrow











IAMIC38MIPI60TMS570

Texas Instruments 60-pin MIPI



ok-arrow









IAMPCPIN14SAM34

MPC 14-pin JTAG to MPC Samtec 34-pin





ok-arrow







IAMIC38SAM50MPC

50-pin ERF8 MPC5xxx Nexus







ok-arrow





IADAP10-HSTCU

DAP 10-pin 1.27mm to HSTCU (USB-C)









ok-arrow



IADAP10MEDC17

MEDC17 DAP 10-pin 1.27mm









ok-arrow



IADAP10ECU14

ECU14 DAP 10-pin 1.27mm









ok-arrow



IA10PINDAP22PINSAM

10-pin DAP2 to 22-pin ERF8 DAP2









ok-arrow



IAPIN14RH850SAM46

RH850 Aurora 34-pin to Aurora 46-pin











ok-arrow





Texas Instruments 14-pin (2.54mm) Converter

Click to expand







Ordering code

IAPIN20ARM14TI

Targets based on Texas Instruments (TI) ARM microcontroller can feature Texas Instruments ARM 14-pin target debug connector with the TI the proprietary pinout. A converter connecting at the end of the 20-pin 2.54mm ARM Debug Adapter is available for I ARM 14-pin pinout. Make sure you don’t mix up TI pinout with the standard 14-pin 2.54mm ARM Debug Adapter (Ordering code IC50112).



The following pinout is valid on the target side:

Signal Direction

Signal Description

Signal

Pin

Pin

Signal

Signal Description

Signal Direction

O

JTAG

TMS

1

2

nTRST

JTAG

O

O

JTAG

TDI

3

4

GND

Ground



I

Reference Voltage

Vref

5

6

NC

Not Connected



I

JTAG

TDO

7

8

GND

Ground



I

Return TCK

RTCK

9

10

GND

Ground



O

JTAG

TCK

11

12

GND

Ground



I

Debug Acknowledge

DBACK

13

14

nRESET

Reset

I/O

14-pin TI ARM pinout



Signal Direction is described from the BlueBox perspective.



Warning_orange

When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure.



If the jumper on the converter is populated, the SYSTEM RESET line is connected to pin 14 on the target side. If SYSTEM RESET is not needed, the jumper should be removed.

The converter connects to the target via a 14-pin 2.54 mm connector, for example Yamaichi FAS-1401-2101-2-0BF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61201421621.



Warning_orange

This converter is used only in conjunction with the 20-pin 2.54mm ARM Debug Adapter  (Ordering code IC50111-1).











Texas Instruments 60-pin MIPI Converter

Click to expand







Ordering code

IAMIC38MIPI60TMS570

Embedded targets based on Texas Instruments (TI) TMS570 microcontroller can feature Texas Instruments 60-pin MIPI target debug connector with the TI proprietary pinout. A converter connecting at the end of the Mictor 38-pin ARM Parallel 16-bit Debug Adapter is available for Texas Instruments 60-pin MIPI pinout and must be ordered separately.



Warning_orange

The iC5000 and the iC5700 can trace up to 16 trace data lines. For this reason the target microcontroller has to be configured for 16-bit trace port operation even if the target features 60-pin MIPI connector with 32 data trace lines connected.



Warning_orange

Signal naming in the documentation uses target signal names and not the ones from the MIPI standard. Refer to ‘MIPI Alliance Recommendation for Debug and Trace Connectors’ and ‘ARM Target Interface Connections’ documentation for more information about signal names and their functions.



The converter connects to the target via a 60-pin MIPI connector, for example Samtec QTH-030-01-L-D-A. A target should feature a matching part, for example Samtec QSH-030-01-L-D-A.



Warning_orange

This converter is used only in conjunction with the 38-pin Mictor ARM Parallel 16-bit Debug Adapter  (Ordering code IC50115).



The following pinout is valid on the target side:

Signal Direction

Signal Description

Signal

Pin

Pin

Signal

Signal Description

Signal Direction

I

Reference Voltage

Vref

1

2

TMS

JTAG

O

O

JTAG

TCK

3

4

TDO

JTAG

I

O

JTAG

TDI

5

6

nRESET

Reset

O

O

Return TCK

RTCK

7

8

nTRST

JTAG Pull down

O

O

JTAG Pull up

nTRST

9

10

NC

Not Connected





Not Connected

NC

11

12

NC

Not Connected



I

Trace Clock

TRACECLK

13

14

NC

Not Connected





Not Connected

NC

15

16

GND

Ground



I

Trace Data

TRACECTL

17

18

NC

Not Connected



I

Trace Data

TRACEDATA0

19

20

NC

Not Connected



I

Trace Data

TRACEDATA1

21

22

NC

Not Connected



I

Trace Data

TRACEDATA2

23

24

NC

Not Connected



I

Trace Data

TRACEDATA3

25

26

NC

Not Connected



I

Trace Data

TRACEDATA4

27

28

NC

Not Connected



I

Trace Data

TRACEDATA5

29

30

NC

Not Connected



I

Trace Data

TRACEDATA6

31

32

NC

Not Connected



I

Trace Data

TRACEDATA7

33

34

NC

Not Connected



I

Trace Data

TRACEDATA8

35

36

NC

Not Connected



I

Trace Data

TRACEDATA9

37

38

NC

Not Connected



I

Trace Data

TRACEDATA10

39

40

NC

Not Connected



I

Trace Data

TRACEDATA11

41

42

NC

Not Connected



I

Trace Data

TRACEDATA12

43

44

NC

Not Connected



I

Trace Data

TRACEDATA13

45

46

NC

Not Connected



I

Trace Data

TRACEDATA14

47

48

NC

Not Connected



I

Trace Data

TRACEDATA15

49

50

NC

Not Connected





Not Connected

NC

51

52

NC

Not Connected





Not Connected

NC

53

54

NC

Not Connected





Not Connected

NC

55

56

NC

Not Connected





Ground

GND

57

58

GND

Ground





Not Connected

NC

59

60

NC

Not Connected



60-pin MIPI pinout



Blue colored signals are trace signals.

Signal Direction is described from the BlueBox perspective.





MPC 14-pin JTAG to MPC Samtec 34-pin Converter

Click to expand







Ordering code

IAMPCPIN14SAM34

This converter connects between the 14-pin 2.54mm MPC5xxx Debug Adapter (Ordering code IC50150) and the MPC5xxx/SPC5 target featuring a 34-pin Samtec ERF8 connector exposing Aurora trace interface.



The following pinout is valid on the target side:

Signal Direction

Signal Description

Signal

Pin

Pin

Signal

Signal Description

Signal Direction



Not Connected

NC

1

2

Vref

Reference Voltage

I



Not Connected

NC

3

4

TCK

JTAG

O



Ground

GND

5

6

TMS

JTAG

O



Not Connected

NC

7

8

TDI

JTAG

O



Not Connected

NC

9

10

TDO

JTAG

I



Ground

GND

11

12

nJCOMP

JTAG TRST (optional)

O



Not Connected

NC

13

14

NC

Not Connected





Not Connected

NC

15

16

~EVTI0

Nexus Event Input

O (not used)



Ground

GND

17

18

Not Connected

NC





Not Connected

NC

19

20

nPORESET

Power On Reset

O



Not Connected

NC

21

22

nRESET

Reset

IO



Ground

GND

23

24

GND

Ground





Not Connected

NC

25

26

Not Connected

NC

O



Not Connected

NC

27

28

Not Connected

NC

O



Ground

GND

29

30

GND

Ground





Not Connected

NC

31

32

NC

Not Connected





Not Connected

NC

33

34

NC

Not Connected



34-pin MPC Samtec pinout



Blue colored signals are parallel trace signals.

Signal Direction is described from the BlueBox perspective.



Only debugging (no trace) is possible through this converter. The converter must be ordered separately.



Warning_orange

When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure.











50-pin ERF8 MPC5xxx Nexus Converter

Click to expand







Ordering code

IAMIC38SAM50MPC

Some targets based on NXP MPC5xxx / ST SPC5 family can feature a 50-pin Samtec ERF8 connector for the Nexus debug interface instead of the popular 38-pin Mictor connector. In this case use and connect the converter to the target first and then connect the 38-pin Mictor MPC5xxx Nexus 16-bit Debug Adapter to the converter.



Warning_orange

It has been noticed that the 50-pin Samtec ERF8 target connector may not always provide good mechanical stability in a vertical direction which can in worst case yield an unreliable debug connection. Special care must be taken when connecting this debug adapter to the target to prevent potential connection problems.



Warning_orange

When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure.



The converter connects to the target via a 50-pin Samtec ERM8 connector, Samtec ERM8-025-01-L-D-EM2-TR. A target should feature a matching part, for example Samtec ERF8-025-05.0-L-DV.







The following pinout is valid on the target side:

Signal Direction

Signal Description

Signal

Pin

Pin

Signal

Signal Description

Signal Direction

I

Message Data Clock

MSEO0

1

2

Vref

Reference Voltage

I

I

Message Data Clock

MSEO1

3

4

TCK

JTAG

O



Ground

GND

5

6

TMS

JTAG

O

I

Message Data Outputs

MDO0

7

8

TDI

JTAG

O

I

Message Data Outputs

MDO1

9

10

TDO

JTAG

I



Ground

GND

11

12

nJCOMP

JTAG TRST (optional)

O

I

Message Data Outputs

MDO2

13

14

NC

Not Connected



I

Message Data Outputs

MDO3

15

16

EVTI

Nexus Event Input

O



Ground

GND

17

18

EVTO

Nexus Event Output

I

I

Message Data Clock

MCKO

19

20

nRESET

Reset

O

I

Message Data Outputs

MDO4

21

22

NC

Not Connected

O



Ground

GND

23

24

GND

Ground



I

Message Data Outputs

MDO5

25

26

NC

Not Connected



I

Message Data Outputs

MDO6

27

28

NC

Not Connected





Ground

GND

29

30

GND

Ground



I

Message Data Outputs

MDO7

31

32

NC

Not Connected



I

Message Data Outputs

MDO8

33

34

NC

Not Connected





Ground

GND

35

36

GND

Ground



I

Message Data Outputs

MDO9

37

38

NC

Not Connected



I

Message Data Outputs

MDO10

39

40

NC

Not Connected





Ground

GND

41

42

GND

Ground



I

Message Data Outputs

MDO11

43

44

MDO13

Message Data Outputs

I

I

Message Data Outputs

MDO12

45

46

MDO14

Message Data Outputs

I



Ground

GND

47

48

GND

Ground



I

Message Data Outputs

MDO15

49

50

NC

Not Connected



50-pin Samtec ERF8 MPC5xxx Nexus target pinout



Blue colored signals are trace signals.

Signal Direction is described from the BlueBox perspective.





RH850 Aurora 34-pin to Aurora 46-pin Converter

Click to expand







Ordering code

IASAM34RH850SAM46

If your RH850/U2B target features 46-pin target debug connector. It must be ordered separately. The converter is used only in conjunction with RH850 Aurora Active Probe.



The following pinout is valid on the Active Probe side:

Signal Direction

Signal Description

Signal

Pin

Pin

Signal

Signal Description

SignalDirection

I

AGBT TX0_P

TX0_P

1

2

Vref

Reference Voltage

I

I

AGBT TX0_N

TX0_N

3

4

LPDCLK

Debug Clock

O



Ground

GND

5

6

TMS

JTAG

O





Reserved

7

8

LPDI

Debug Signal

O





Reserved

9

10

LPDO

Debug Signal

I



Ground

GND

11

12

nTRST

Debug Signal

O





Reserved

13

14

FLMD0

Flash Mode

O





Reserved

15

16

nEVTI

Nexus Event Input

O



Ground

GND

17

18

nEVTO

Nexus Event Output

I





Reserved

19

20

FLMD1

Flash Mode







Reserved

21

22

nRESET

Reset

I/O



Ground

GND

23

24

GND

Ground





Not Connected

NC

25

26

CLK_P

AGBT Clock_P

O



Not Connected

NC

27

28

CLK_N

AGBT Clock_N

O



Ground

GND

29

30

GND

Ground





Not Connected

NC

31

32

LPDCLKOUT

Debug Clock

I



Not Connected

NC

33

34

WDGDIS

Watchdog disable

O

34-pin RH850 Aurora pinout



The following pinout is valid on the target side:

Signal Direction

Signal Description

Signal

Pin

Pin

Signal

Signal Description

Signal Direction

I

AGBT TX0_P

TX0_P

1

2

Vref

Reference Voltage

I

I

AGBT TX0_N

TX0_N

3

4

LPDCLK

Debug Clock

O



Ground

GND

5

6

FLMD1

Flash Mode

O





Reserved

7

8

nAURORESET*

Debug Signal







Reserved

9

10

NC

Not Connected





Ground

GND

11

12

nTRST

JTAG

O





Reserved

13

14

FLMD0

Flash Mode

O





Reserved

15

16

nEVTI

Nexus Event Input

O



Ground

GND

17

18

nEVTO

Nexus Event Output

I





Reserved

19

20

NC

Not Connected







Reserved

21

22

nRESET

Reset

I/O



Ground

GND

23

24

GND

Ground





Not Connected

NC

25

26

CLK_P

AGBT Clock_P

O



Not Connected

NC

27

28

CLK_N

AGBT Clock_N

O



Ground

GND

29

30

GND

Ground





Not Connected

NC

31

32

WDGDIS

Watchdog disable

O



Not Connected

NC

33

34

NC

Not Connected





Ground

GND

35

36

GND

Ground





Not Connected

NC

37

38

TMS

JTAG

O



Not Connected

NC

39

40

LPDI

Debug Signal

O



Ground

GND

41

42

GND

Ground





Not Connected

NC

43

44

LPDO

Debug Signal

I



Not Connected

NC

45

46

LPDCLKOUT

Debug Clock

I

46-pin RH850 Aurora pinout



*nAURORESET can be connected to nRESET via J1

Signal Direction is described from the BlueBox perspective.

Copyright © 2023 TASKING Germany GmbH
